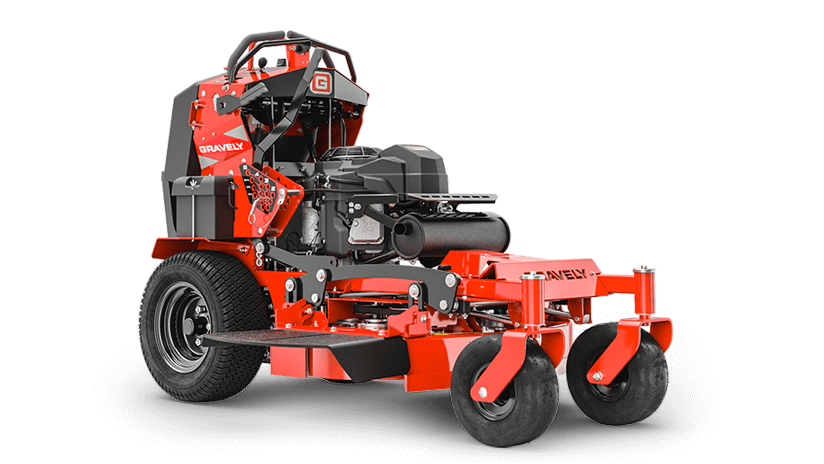

You’ll ride with pride as you deliver that perfect Gravely cut on the Z-Stance. This powerful commercial stand-on mower is easy to maneuver and a breeze to maintain. It’s three deck sizes make quick work of a corporate campus or a gated backyard. You take a stand for comfort, ingenuity, and durability when you’re on a Z-Stance.
| Engine |
Kawasaki® FS600V |
|
|
|---|
| Horsepower |
18.5 |
|
|
|---|
| Engine Displacement |
36.8 in / 603 cc |
|
|
|---|
| Fuel System |
Gas |
|
|
|---|
| Fuel Capacity |
4.5 gal / 17 ltr |
|
|
|---|
| Drive System |
Hydro-Gear® ZT-3100® Transaxles |
|
|
|---|
| Transmission Type |
Hydrostatic |
|
|
|---|
| Brake Type |
Lever Activated Parking |
|
|
|---|
| Driver Position |
Stand |
|
|
|---|
| Ground Speed Forward |
7 mph / 11.3 kph |
|
|
|---|
| Ground Speed Reverse |
3 mph / 4.8 kph |
|
|
|---|
| Wheels Front |
11.0 x 5.0 in - 6.0 in (27.9 x 12.7 cm - 27.9 cm) |
|
|
|---|
| Wheels Rear |
20.0 x 6.5 in - 8.0 in (50.8 x 16.5 cm - 20.3 cm) |
|
|
|---|
| Front Wheel Track |
24.8 in |
|
|
|---|
| Rear Wheel Track |
32.4 in / 82.3 cm |
|
|
|---|
| Charger Type |
Standard |
|
|
|---|
| Battery Capacity |
300 CCA |
|
|
|---|
| Number of Batteries |
1 |
|
|
|---|
| Battery Voltage |
12 |
|
|
|---|
| Battery Type |
Lead Acid - Maintenance Free |
|
|
|---|
| Battery Size |
U1 |
|
|
|---|
| Deck Size |
32 in / 81.3 cm |
|
|
|---|
| Coverage Hour |
2.2 acres / 0.9 hectares |
|
|
|---|
| Spindle Type |
Mechanical |
|
|
|---|
| Deck Material |
7 ga |
|
|
|---|
| Deck Construction |
Fabricated X-Factor ® II |
|
|
|---|
| Discharge Configuration |
Side |
|
|
|---|
| Cutting Height Min |
2 in / 5.1 cm |
|
|
|---|
| Cutting Height Max |
5 in / 12.7 cm |
|
|
|---|
| Cutting Width |
32 in / 81.3 cm |
|
|
|---|
| Weight (assembled) |
669 lb |
|
|
|---|
| Length |
65.5 in / 166.4 cm |
|
|
|---|
| Width |
32 in / 81.3 cm |
|
|
|---|
| Width (Chute Up) |
32.8 in / 83.3 cm |
|
|
|---|
| Width (Chute Down) |
44.8 in / 113.8 cm |
|---|
